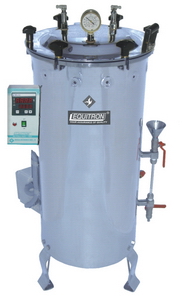

Advantages Vertical Triple Wall Jacketed Digital Autoclaves
Supplied with traceable certificate for Pressure Gauge and Temperature Indicator.
Low water level cut off.
A sturdy and tension free Autoclave which can safely be operated repeatedly even in remote places.
Applications of Triple Wall Jacketed Digital Autoclaves
Vertical Jacketed Autoclaves - PAD are ideal for all applications requiring, routine total destruction of all living micro-organisms.
Ideal for Clinics, Primary Health Centres, Nursing Homes, Hospitals, Doctors and Healthcare Institutes.
| Model |
Working Chamber
Size (Ø x D) |
Capacity
liters |
Optional
Carrier (Ø x D) in cm |
App. Shipping Details
Net / Gr. / Volume |
| #7427PAD |
30 x 50 cm (12 x 20") |
35 |
1 of 25 x 45 - #S3084 |
45 kg / 80 kg / 0.5 m3 |
| #7447PAD |
40 x 60 cm (16 x 24") |
75 |
1 of 35 x 55 - #S3087 |
80 kg / 140 kg 1.0 m3 |
Construction for Autoclaves
Inside chamber, jacket & outer chamber are fully stainless steel.
Hydraulically die pressed lid from stainless steel plate.
Flanges, fly screws, cross pins are also fully stainless steel.
All internal joints argon welded, ground and polished to give crevice free internals.
Standard Features for Autoclaves
Electrical & Electronics
Digital Temperature Indicator Controller having a preset temperature of 121°C linked to a preset timer of 20 minutes.
End of cycle buzzer.
Industrial grade energy efficient heater(s).
Mechanical
Lid is fitted with pressure gauge, safety valve and extra safety cum manual exhaust valve.
Moulded rubber gasket.
Automatic purging by mechanical valve for efficient sterilisation.
Water level indicator.
Fitted with a Safety Valve for added safety.
Optional Accessories for Autoclaves :
Stainless Steel wire mesh carrier.
Dressing Drum.
