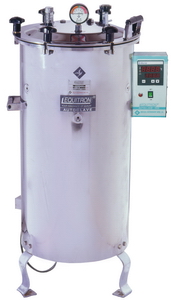

Advantages of Autoclaves Preset Automatic Digital PAD
Automatic Purging for efficient sterilization.
Preset (at 121°C) Digital temperature indicator cum Controller linked to a preset (20 min) timer.
Low water level cut off.
End of cycle buzzer.
Fitted with a Safety Valve for added safety.
Supplied with traceable certificate for Pressure Gauge and Temperature Indicator.
Applications of Preset Digital Autoclaves
Preset Automatic Digital Autoclaves are ideal for all applications requiring, routine destruction of all living micro-organisms.
Ideal for all Hospitals, Nursing Homes, Speciality Doctors, Microbiology Labs, R & D and Industry.
| Model |
Working Chamber Size (Ø x D in cm / Lt ) |
Carrier (Ø x D ) in cm |
Heater |
App. Shipping Details Net / Gr./ Volume |
| #7421PAD |
30 x 50 cm (12x20’’) / 35 |
1 of 25 x 45 |
1.80 kW |
34 kg / 65 kg / 0.32 m3 |
| #7423PAD |
30 x 50 cm (12x20’’) / 35 |
1 of 25 x 45 |
3.00 kW |
40 kg / 80 kg / 0.45 m3 |
| #7431PAD |
35 x 55 cm (14x22’’) / 53 |
1 of 30 x 50 |
2.25 kW |
39 kg / 68 kg / 0.40 m3 |
| #7433PAD |
35 x 55 cm (14x22’’) / 53 |
1 of 30 x 50 |
3.00 kW |
48 kg / 88 kg / 0.55 m3 |
| #7440PAD |
40 x 60 cm (16x24") / 75 |
1 of 35 x 55 |
3.00 kW |
80 kg / 130kg / 1.10m3 |
| #7441PAD |
45 x 71 cm (18x28’’) / 113 |
2 of 40 x 33 |
3.50 kW |
77 kg / 125 kg / 0.92 m3 |
| #7451PAD |
55 x 76 cm (22x30’’) / 180 |
2 of 50 x 35 |
5.00 kW |
110 kg / 180 kg / 1.28 m3 |
Construction Details of Preset Autoclaves
Inside and outside chamber are fully stainless steel.
Hydraulically die pressed lid from stainless steel plate.
Flange, fly screw, cross pin, heater cover stand are also fully stainless steel.
All internal joints argon welded, ground and polished to give crevice free internals.
Standard Features of Preset Autoclaves
Electronics and Electrical
Preset Digital Temperature Indicator cum Controller linked to a preset timer with 1ºC resolution and ±1ºC accuracy.
Pt100 Sensor for precise control and monitoring.
Low Water Level cut off.
Industrial grade energy efficient ring type heater, custom made for Autoclaves, thus reducing power bills by 16 to 40%.
Mechanical
Lid is fitted with pressure gauge, safety valve/safety fusible plug, manual exhaust valve & vacuum breaker cum purge valve.
Handy raise lid lifting device - safe and user friendly - for lid in #7441 & #7451.
Moulded rubber gasket.
Drain valve on side at bottom for easy cleaning.
Stainless Steel Wire Mesh Carrier and heater cover stand.
