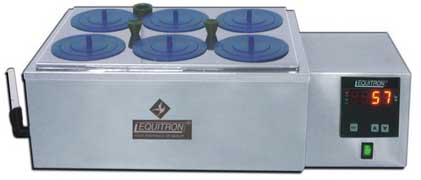

Applications of Digital Concentric Ring Water Baths :
Concentric Rings Water Baths are ideal for all applications requiring gentle steaming work with Erlenmeyer flasks, glasses etc.
Advantages of Water Bath Concentric Rings Digital
Fitted with a water level indicating device.
Optional constant water level device.
A removable flat drop on lid for concentric rings enables the bath to be used for other work also.
Construction Details of Digital Water Baths :
Double walled, insulated, full stainless steel construction
Internal chamber and external chamber, drop on lid with holes of 75mm Ø all of stainless steel.
Concentric rings in steps of 25 and 50 mm ID moulded from industrial grade non-corrosive material.
Standard Features Concentric Water Baths
A precise Digital Temperature Indicator cum Controller having resolution and control accuracy of ± 1°C in digital model.
Temperature range: Ambient +5°C to 100°C.
Industrial grade long life special heaters for efficient transfer of heat.
| Model |
Water Bath |
Control |
Concentric Rings |
Heater |
App. Shipping Details Net / Gr. / Volume |
| #6806DI |
30 x 20 x 10 cm |
Digital |
6 holes of 75 mm Ø with steps of 2 5 mm |
800 W x 1 |
5.0 kg / 5.6 kg / 0.04 m3 |
| #6812DI |
40 x 30 x 10 cm |
Digital |
12 holes of 75 mm Ø with
steps of 2 5 mm |
800 W x 2 |
9.0 kg / 10 kg / 0.06 m3 |
| #6824DI |
60 x 40 x 10 cm |
Digital |
24 holes of 75 mm Ø with steps of 25 mm |
1500 W x 2 |
13 kg / 28 kg / 0.15 m3 |
All electrical appliances work on 230 VAC, 50Hz, single phase.
Due to continuous improvement in design, the product supplied may have modified features.
