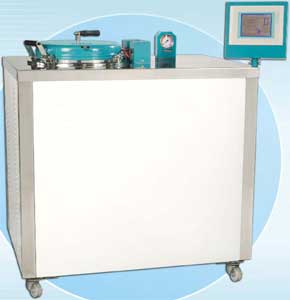

Advantages for Media Preparator cum Auotclaves
« Prepares liquid media agar - 3~9 lit in #7415-09 & 12~27 lit in 7415-27.
« It autoclaves/sterilizes & cools the media to user settable temperature within 60-110 minutes.
« Continuous stirring throughout the cycle assures proper mixing of
media & uniformity.
« Separate large addition port provided for adding nutrient / blood.
« Controls actual media temperature as temperature probe is kept
immersed in media.
« Media sterilization temperature range: up to 122°C.
« Media dispensing temp range: 40~80°C.
« Removable / exchangeable media vessels & hence easy to clean and enables back to back
media.
« Equiclave is suitable for connecting to any petri dish filling line.
« Inbuilt support pressure mechanism/system avoids over boiling of media during cooling phase.
« Online printing to DMP printer with complete cycle information & temperature readings.
Constructions
• Internal chamber, Media container & lid alongwith all wetted
parts fabricated from stainless steel or special food grade
plastic.
• Single lever pronged closure system for Lid with a patented
silicon gasket (registered design N. 208774).
• Easy lift & closing of the lid by assisted support.
• Easy access to all the components due to modular design.
• Built in pressure pump to prevent flash boiling.
• Large diameter addition port on lid.
• Special inbuilt magnetic stirrer.
• Removable stainless steel media container.
Applications:
» Pharma & Biotech industries.
» Food research & quality assurance labs.
» Agriculture research & quality assurance lab.
» Health care & diagnostic labs.
» Veterinary diagnostic labs.
» Universities.
Control Systems
Media Preparator is a PLC with touch screen graphic display which provides higher accuracy, repeatability & user level flexibility. Thus making it operator friendly.
All the program data, critical parameters, process status & alarms are clearly displayed on the touch screen monitor.
PLC controls & monitors each & every parameter.
Online F0 calculation.
Corrective action program on power failure.
Corrective action program on low sterilization temperature.
Prints relevant cycle information with detail temperature reading & F0 value to DMP printer (Printer not part of standard supply).
Provides total user flexibility, User settable:
1. Sterilization temperature
2. Sterilisation Hold time
3. Dispense temperature
4. Dispense time
5. Print start temperature
6. Print interval
Safety
Low water level detection.
Raw water under / over pressure detection.
Alarms for sensor break.
Door interlock for residual pressure.
Dispense & addition port lid open alarm.
Dispense & addition port lid locked under pressure.
Spring loaded safety valve for over pressure.
Independent thermal cut off for high temperature.
MCB for electrical safety.
Every chamber is hydraulically tested to twice its operating pressure. All the products are manufactured
with extreme care set as per ISO13485:2003. Each & every stage including raw material inward stage, processing &
manufacturing is inspected by qualified engineers. All the products are finally calibrated, tested & validated in QC by
qualified & experienced engineers & confirmed for desired performance.
Utility
Supply: Single Phase, 230 Vac, 50 Hz , 18Amp.
Water Supply: Deminerilised / purified water line with
hardness & temperature less than <21 (German) & 30°C
respectively. Minimum 2 bar pressure & Maximum 4 bar.
Exhaust /Drain line: Capable of handling 121°C.
steam / water.
Foot Print: 750 x 650 mm.
Optional Accessories
|
|  |
Peristaltic Pump:
It is used to dispense the required quantity of media from
media preparator.
Programmable fill volume.
Programmable suck back to prevent dripping.
Fill by revolution count for better accuracy.
Copy function for repeat fill.
Signals for synchronising with filling line.
Raw Water Filter:
Raw (Cooling) water with high TDS will increase the scalling, thus it will
reduce the efficiency of autoclave considerably. The filter cum softening
assembly for autoclave is essential, if the cooling water hardness is
high.
Optional Accessories:
Booster Water Pump: #S4305-12
A booster pump would be essential where pressurised (2-4 bar) raw / cooling water is not available. The booster
pump will increase the raw / cooling water pressure to match the requirement to operate the media prepartor.
| Model |
#7415-09 |
#7415-27 |
| Size of media container |
Ø280 x 250 mm approx. |
Ø300 x 500 mm approx. |
| Capacity |
3 ~ 9 Ltr. |
9 ~ 27 Ltr. |
| Sterilization Temp |
Max up to to 122.0°C. |
| Sterilization Timer |
1~99 minutes. |
| Dispense Temp |
40°C ~ 80°C. |
| Dispense Timer |
1~999 minutes. |
| Print Interval |
12 seconds ~ 5 minutes. |
| Stirring Speed |
70 RPM |
| Display |
5 x 7 Monochrome Touch Screen display. |
| Online Printing Option |
Standard part of supply - to DMP printer (Printer not included). |
| Model |
Product |
Capacity |
External Dimension
L/W/D in mm |
| #7415-09 |
Media Preparator
cum Autoclave |
9 ltr |
750 x 650 x 500 |
| #7415-27 |
Media Preparator
cum Autoclave |
27 ltr |
1055 x 665 x106 |
| #S4305-70 |
Peristaltic Pump |
-- |
200 x 200 x 250 |
| #S1104-50 |
Raw Water Filter |
-- |
280 x 160 x 250 |
| #S4305-12 |
Booster Water Pump |
-- |
-- |
| #S3101-53 |
Media Container |
9 ltr |
-- |
| #S3101-54 |
Media Container |
27 ltr |
-- |
* - All electrical appliances work on 230 VAC, 50Hz, single phase.
