Mitutoyo Optional Accessories for Automatic Measurement
Mitutoyo Optional Accessories for Automatic Measurement
Mitutoyo Optional Accessories for Automatic Measurement
FEATURES
Compatible with SV-3200, SV-C3200, SV-C4500, CS-3200 and CNC Models
| Specifications |
| Order No. | Model | Description | |

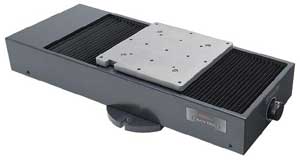

| 178-097 | Y-axis table | Y-axis table for both positioning and capable of
3D surface roughness measurement when used with optional software FTPK-PRO or MCubeMap.** * Not supporting Y-axis measurements. ** Only for 178-096 Travel range: 8” (200mm) Resolution: 1.97μin (0.05μm) Positioning accuracy: ±3μm Drive speed Max.: 3.15”/s (80mm/s) Maximum load: 110 lbs (50kg) Mass: 62 lbs (28kg) | |
| 12AAD975 | 1-Axis table | For efficient measurement in the axial/transverse
directions. When measuring a cylindrical workpiece, automatic alignment can be performed in combination with the Y-axis table. * q1-axis mounting plate (12AAE630) is required when directly installing on the base of the SV-3100. Displacement: 360° Resolution: 0.004° Maximum load: 26.5 lbs (12kg) Rotational speed: Max. 10°/s Mass: 15 lbs (7kg) | |
| 178-078 | 2-Axis table | You can measure multiple points on a cylindrical work piece and automate front/rear-side measurement. * 2-axis mounting plate (12AAE718) is required when directly installing on the base of the SV-3100. Displacement: 360° Resolution: 0.0072° Maximum load (loading moment): 8.8 lbs (4kg) (343 N•cm or less) Rotational speed Max.: 18°/s Mass: 11 lbs (5kg) |
|
| 178-087 | Auto-leveling table | This is a stage that performs fully automatic leveling as measurement starts, freeing the user from this troublesome operation. Fully automatic leveling can be done quickly by anyone. In addition, the operation is easy and reliable. Inclination adjustment angle: ±2° Maximum load: 15 lbs (7kg) Table dimensions: 5.1” x 3.9”(130 x 100mm) Mass 7.7: lbs (3.5kg) |
|
| 211-032 | Quick Chuck | Suitable for holding small parts witheasy-to-operate knurled-ring clamping. Holding capacity: Internal jaws: OD = 1-36 mm, ID = 14-70 mm. External jaws: OD = 1-75 mm.External dimensions: ø118x34 mmMass: 1.2kg |
|
| 211-031 | Micro-Chuck | Used for clamping a workpiece (less than ø1 mm dia.)that the centering chuck cannot handle.Holding capacity: up to ø1.5 mmExternal dimensions: ø118x48.5 mmMass: 0.8kg |
