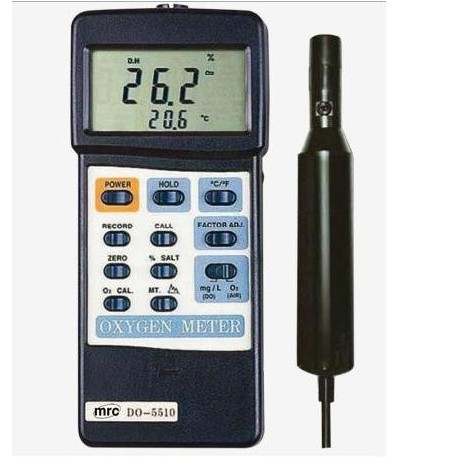

Lutron DO-5510 Dissolved Oxygen Meter

Lutron DO-5510 Dissolved Oxygen Meter

General Description
This Digital Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement.

Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industry, Schools & Colleges, Quality control.

Features
* The polarographic type oxygen probe with an incorporated Temp. sensor, high precision measurement for Dissolved Oxygen ( DO ) and Temp. measurement.
* Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle
* Automatic Temp. compensation from 0 to 50 for sensor. ℃
* Build in " % SALT " & " Mountain Height " compensation, adjust the factor by push the button on the front panel.
* Microprocessor circuit assures high accuracy and provides special functions and features.
* Super large LCD display with contrast adjustment for best viewing angle.
* Multi-display, show oxygen & Temp. at the same time.
* Records Maximum, Minimum and Average readings with recall, data hold.
* Auto power off saves battery life.
* Powered by 006P DC 9V battery.
* RS 232 PC serial interface.
* Build in temperature , measurement. ℃ ℉
* Use the durable, long-lasting components, including a heavy duty & compact ABS-plastic housing case.

Specification
Circuit :Custom one-chip of microprocessor LSIncircuit.
Display :Dual function meter's display, 13 mm ( 0.5" ). Super large LCD display with contrast adjustment for best viewing angle.
Measurement & Range :Dissolved Oxygen :0 to 20.0 mg/L ( liter ).
Oxygen in Air :0 to 100.0 %.
Temperature :0 to 50.
Resolution :Dissolved Oxygen :0.1 mg/L.
Oxygen in Air :0.1 % O2 .
Temperature :0.1
Accuracy (23± 5 ) ℃ :Dissolved Oxygen ± 0.4 mg/L.
Oxygen in Air ± 0.7% O2.
Temperature ± 0.8 /1.5
Sensor Structure :The polarographic type oxygen probe with an incorporated temperature sensor.
Probe Compensation & Adj. :Temperature 0 to 50 ,Automatic
Salt :0 to 39 % Salt
Height :(M. T) 0 to 3900 meter
Memory Recall :Records Maximum, Minimum and Average readings with recall.
Power off :Auto power off saves battery life, or manual off by push button.
Data Output :RS 232 PC serial interface.
Over input :Indication of "- - - -".
Operating Temperature :0 to 50 (32 to 122). ℃ ℃℉ ℉
Operating Humidity :Max. 80% RH.
Sample Time :Approx. 0.4 sec.
Power Supply :006P DC 9V battery (Heavy duty type).
Power Current :Approx. DC 6.6 mA.
Weight :335 g/0.74 LB (batteries & probe included)
Size Main instrument :180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch).
Oxygen probe :190 mm x 28 mm Dia. (7.5" x 1.1" Dia.)

We do undertake Servicing and repairing of Lutron DO-5510 Dissolved Oxygen Meter lutron Range of products throughout india
