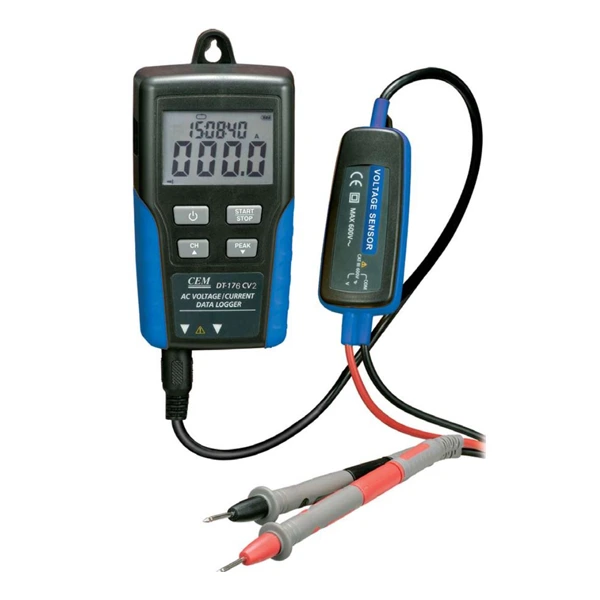

CEM Current and Voltage Dataloggers-DT-176CV2

CEM Current and Voltage Dataloggers-DT-176CV2

The 175/176 is a datalogger for measuring and recording True RMS current and voltage. The readings are saved in the logger and simply read out by your PC with USB interface. The LCD can show current readings, MAX, MIN and sign of alarm.d display 5 statistics (AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with software CD and USB cable for transferring collected data to computer for later analysis or data printing.

• FEATURES
• SPECIFICATION
• ACCESSORIES
• • Large capacity for storing 60,000 data points
  • ACA current clamp sensor (CP-09)
  • Voltage sensor can measure the floating voltage to meet CAT III 600V
  • LCD to show some logging information easily
  • Freely selectable measurement cycle from 1sec. to 24h
  • Download collected data through PC’s USB interface
  • Alarm display if user-defined maximum/minimum values are exceeded
  • Analysis software used to view graph for logging data

    Input Channel	Dual
    T-RMS Measurement	●
    Data Memory	200000
    Wave Memory	●
    MAX/MIN, Peak Mode	●
    Time & Date Stamp	●
    Wave store	●
    Auto Power Off	●
    USB Interface	●
    Manual & Automatic Mode	●

    •



  We DFT TECH, are CEM INSTRUMENTS Authorized Distributors, Importers, Stockists, Dealers and Suppliers of CEM Current and Voltage Dataloggers-DT-176CV2 Products in Karnataka,Bengaluru Urban, Bagalkot, Hingoli, Maharastra, Akola, Amravati, Buldana, Yavatmal, Osmanabad, Nanded, Latur and Belgaum.
