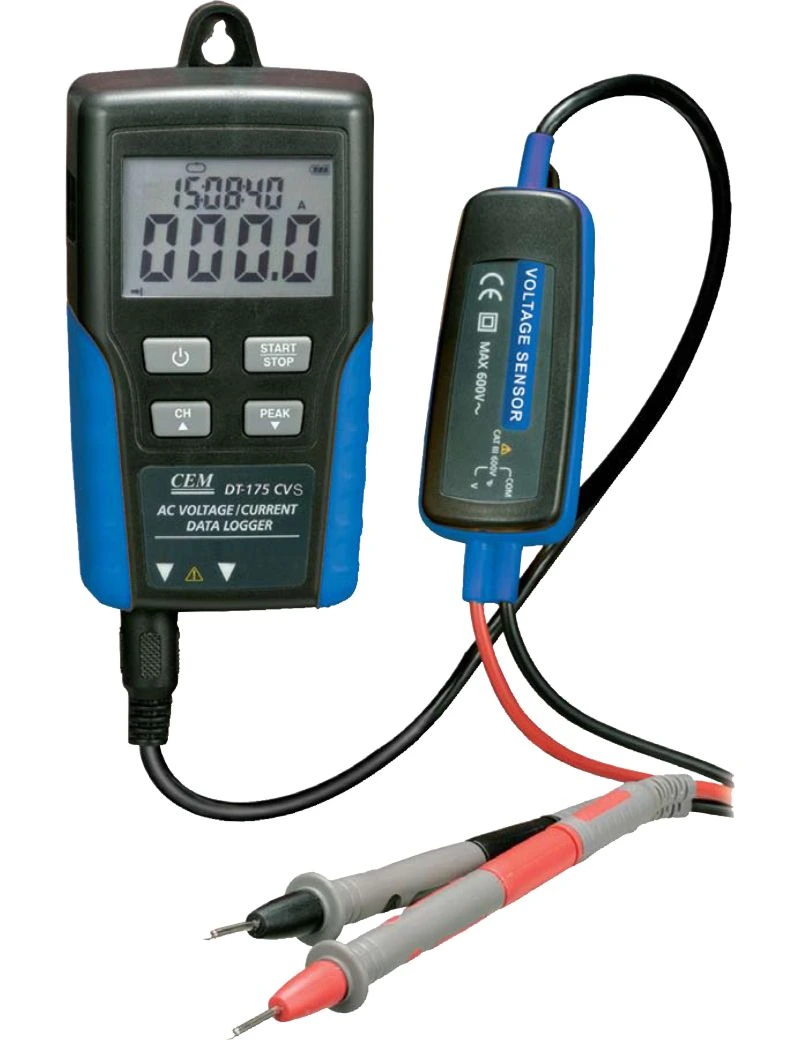

CEM Current and Voltage Dataloggers-DT-175CV1

CEM Current and Voltage Dataloggers-DT-175CV1

CEM Current and Voltage Dataloggers-DT-175CV1

The 175/176 is a datalogger for measuring and recording True RMS current and voltage. The readings are saved in the logger and simply read out by your PC with USB interface. The LCD can show current readings, MAX, MIN and sign of alarm..

  • FEATURES
  • SPECIFICATION
  • ACCESSORIES
      • Large capacity for storing 60,000 data points
      • ACA current clamp sensor (CP-09)
      • Voltage sensor can measure the floating voltage to meet CAT III 600V
      • LCD to show some logging information easily
      • Freely selectable measurement cycle from 1sec. to 24h
      • Download collected data through PC’s USB interface
      • Alarm display if user-defined maximum/minimum values are exceeded
      • Analysis software used to view graph for logging data

      Input Channel

      Single

      T-RMS Measurement

      Data Memory

      100000

      Wave Memory

      MAX/MIN, Peak Mode

      Time & Date Stamp

      Wave store

      Auto Power Off

      USB Interface

      Manual & Automatic Mode



    We DFT TECH, are CEM INSTRUMENTS Authorized Distributors, Importers, Stockists, Dealers and Suppliers of CEM Current and Voltage Dataloggers-DT-175CV1 Products inWashim, Aurangabad, Beed, Jalna, Parbhani, Mumbai, Bellary, Bidar, Kalaburagi, Koppal, Satara, Solapur, Chandrapur, Gadchiroli, Gondia, Nagpur, Wardha, Sindhudurg, Ahmednagar, Kolar, Ramanagara, Mumbai Suburb an District, Raigad, Ratnagiri and Palghar.
