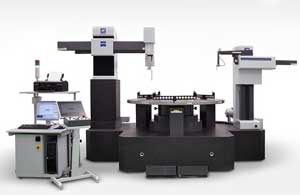

Universal measuring center for form and surface RONDCOM Grande Three in one: contour, surface and form measurement with one setup.

The RONDCOM Grande measuring center is a pioneering innovation, allowing the measurement of form, contour and surface parameters with one setup.

The heart of the measuring system is the precision rotary table on air bearings with rotational accuracy of 80 nanometers. The first column of the RONDCOM Grande is equipped with a combined contour and surface tracing driver featuring resolution of up to 1.24 nanometers and a laser interferometer. The second column is responsible for form measurement and offers outstanding straightness accuracy in the Z axis. RONDCOM Grande makes the measurement of exact and large parts more efficient as its is performed with one setup and one software, therefore reducing transport and setup times.

RONDCOM Grande is everything in one: a form tester, contour measuring machine and surface measuring station. Substantial reduction in setup times through fully automatic measurement of all parameters with one stup and on a single machine Highly accurate laser interferometer in the contour and surface tracer driver High straightness accuracy in the Z axis Precision rotary table on air bearings with 80 nanometer rotational error Also available with only one column as a pure form measuring station for large, high-precision, heavy parts

The possible fields of application for RONDCOM Grande include bearing rings, mechanical engineering parts, power generation systems, aerospace and wind energy industries. The measuring center evaluates roundness, cylinder form, perpendicularity, parallelism, straightness, flatness, coaxiality, concentricity, thickness error and radial runout, all standard surface parameters, angles and contours.

Measuring cells in production should be easy to fit. The operator places the specimen in the machine, selects a photo for the part or scans an item code and presses a button to start the measurement. Now SURFCOM takes over with the ACCTee PRO software and the CNC modules. They allow the automation of measuring runs in SURFCOM and CONTOURECORD systems. The automation system is comprised of three modules: a positioning table in the Y direction, a horizontally arranged rotary table and a vertically arranged rotary table. All modules can be combined and can be operated with two or four-axis control depending on the requirements. Programming can be done conveniently by the teach-in learning mode using the ACCTee PRO measurement software. The CNC modules move the workpiece and the measuring elements to be measured to the touch probe. Operator intervention is reduced to starting the measuring run. Zeiss can project, simulate and produce the individual workpiece fixtures for a fully automatic SURFCOM measuring instrument for you. On request, the entire measuring instrument can be acquired as a turn-key solution including projection and programming.

Automatic contour and roughness measurements by CNC precision positioning systems Appreciable time saving by fully automatic pallet measurements Higher measurement throughput with measurement during production Reduction of measurement costs Easily upgradeable and adaptable Enormous gain in productivity at affordable costs No special instruments required Conveniently programmable by teach-in using the ACCTee PRO measurement software. We will gladly conceptualize the entire system including individual component fixtures and changing pallets.
