Oil Free PTFE Teflon Diaphragm Vacuum Pump Variable Drive

Oil Free PTFE Diaphragm Pump Variable Drive 2mbar Oil Free PTFE Diaphragm Pump Variable Drive 20mbar

Teflon Diaphragm Vacuum Pump

, 2 mbar & 20 mbar


Being an Quality Concerned manufacturers and Suppliers of Teflon Diaphragm Vacuum Pump in India since 1980. Our Teflon Diaphragm Vacuum Pump are mostly & widely used for everyday Vacuum process methods in various Automated Pharmaceutical laboratories, Sophosticated Food Laboratories, Hitech Universities and for Research applications. We specialize in both standard, advanced, customized models with CE Marked, specifically designed to meet the challenging demands of various scientists / Research centers / individual and specialized research applications. Over a long period of time Multilab have been established as reliable Manufacturers, Exporters and Suppliers of Teflon Diaphragm Vacuum Pump in India, catering to the huge markets in Asia, Middle East,North America and South America, Australia, Africa and Europe. Apart from that we are supplying ourTable Top Stainless Steel Water Stills & Stone Fin Water Stills in India through dealers , catering to a variety of customers ranging from Atomic energy, Biotechnology Companies, Microbiology Laboratory, Pharmaceutical Manufacturers, Defence Installations, Research Laboratories, Clinical Microbiology/Pathology/Biochemistry Laboratories, Educational Institutes and research laboratories, development laboratories, and test laboratories of leading national and multinational companies.

We Multilab Manufacturers, Exporters, Suppliers and Distributors of theTeflon Diaphragm Vacuum Pumpto various industry end user and also supplied through our exclusive Scientific Dealers throughout in india and Worldwide

Advantages for PTFE - Teflon Diaphragm Vacuum Pump, 2 mbar

Built-in PID controller.
Valveless control.
Maintenance free, oil free, clean vacuum.
Stand alone unit, ready to be connected to any application for smooth control.
Absolute vacuum sensor.
Simultaneous display of set and actual vacuum.

Applications for Oil Free PTFE - Diaphragm Vacuum Pump



Oil-Free PTFE Diaphragm Variable Drive Vacuum Pump is most suitable for efficient vacuum distillation in a laboratory.
Ideal partner for Rotary Evaporator or any other application in laboratory where controlled vacuum is a pre-requisite of the process.

Model Description Free air Displacement Ultimate Vacuum App. Shipping Details
Net / Gr. / Volume
#9075.CRP.V02 PTFE diaphragm variable drive vacuum pump with inbuilt Digital PID controller 21 lit/min 2 mbar 13.60 kg / 16.0 kg / 0.115 m³
Following Trap is Part of Standard Supply
# 8841.CT0.202 Glass Vacuum Trap (cold trap type) with SS support rod & clamp for V02 / 020 models. 5.0 kg / 6.0 kg / 0.06 m³

Construction of

PTFE Diaphragm Vacuum Pump



Inert material of construction.
PTFE coated diaphragm.
Head & valve made of inert plastics.

Standard Features for Oil - Free Diaphragm Pump

Supplied with glass separator & mounting bracket as standard.
Ultimate Vacuum - 2 mbar.
Maximum air displacement: 21 lit/min.
Slow & steady control of vacuum with control accuracy of ± 3 mbar.
Power supply 230V , 50Hz, single phase.
In/out nozzles of Ø9.5mm

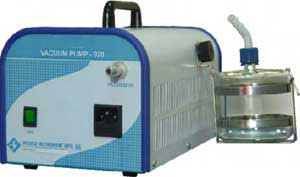

Advantages for PTFE - Teflon Diaphragm Vacuum Pump, 20 mbar


Portable and handy with carrying handle.
No lubrication - oil less.

Applications for Oil Free PTFE - Teflon Diaphragm Vacuum Pump


Oil-Free PTFE Coated Diaphragm Vacuum Pump is ideal for general laboratory use like Rotary Vacuum Evaporation, filtration, gel drying, chemical analysis etc.

Model Description Free air Displacement Ultimate Vacuum App. Shipping Details
Net / Gr. / Volume
#9075.CRP.020 PTFE diaphragm
Vacuum pump - 020
22 lit/min 20 mbar 5.0 kg / 7.0 kg / 0.053 m3

Optional Accessories
Model Product / Description App. Shipping Details
Net / Gr. / Volume
#8920.DVC.MBX Vacuum Controller 0-1000 mbar Digital 4.2 kg / 5.0 kg / 0.02 m³
#8841.CT0.202 Glass Vacuum Trap (Cold trap type) with SS
support rod & clamp for V02 / 020 models
5.0 kg / 7.0 kg / 0.06 m³

Teflon Diaphragm Vacuum Pump Constrcution
Wetted parts of inert plastics.
PTFE coated diaphragm.
Supplied with glass separator.
Equipped with retro-mounting of vapours / vacuum trap.
Continuous rated motor.
In / out nozzles of Ø9.5mm.

Notes:
Use of vapours / vacuum trap (optional) is highly recommended.
